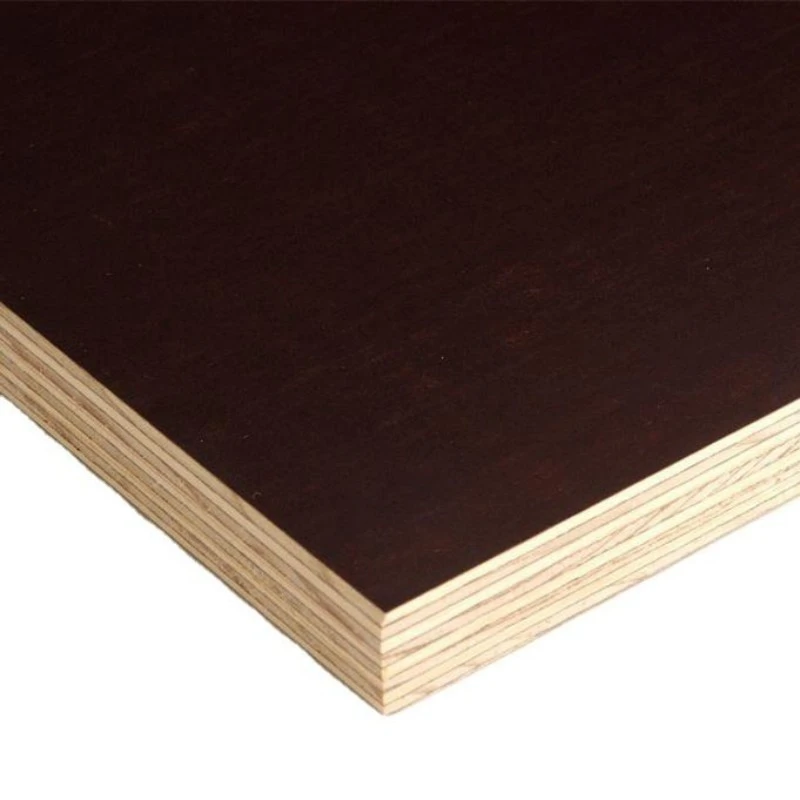

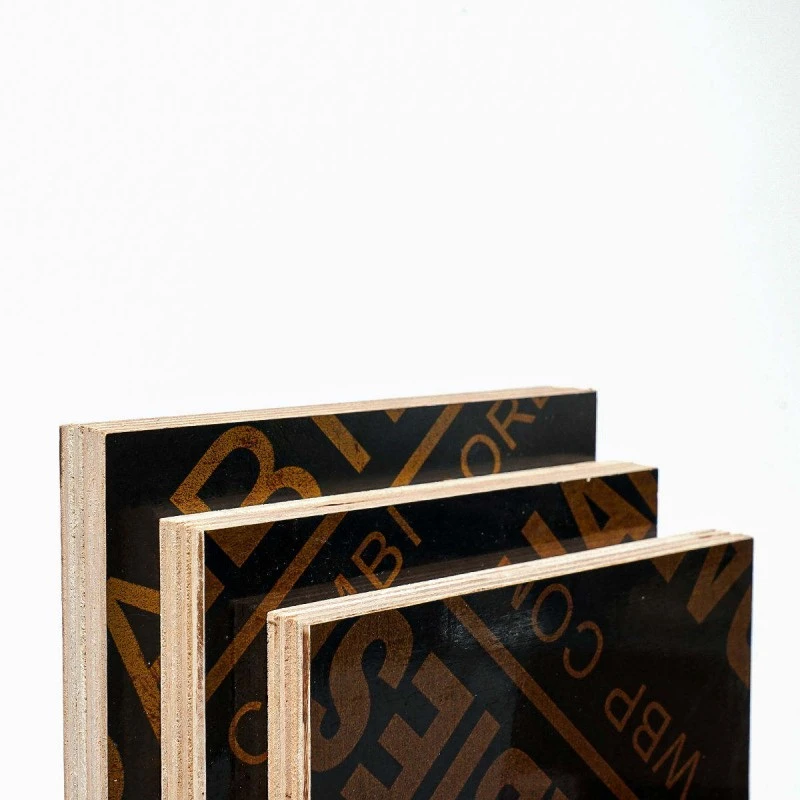

Our high-strength film faced marine plywood is the industry-leading solution for extreme moisture, heavy load, and harsh environmental applications. Manufactured in strict accordance with BS 1088 international marine plywood standard, it combines premium hardwood core, high-performance WBP phenolic adhesive, and double-sided phenolic resin impregnated film, delivering exceptional structural strength, 100% waterproof performance, and ultra-long service life for marine, construction, and outdoor engineering projects.
product key technologies
Raw Material & Manufacturing Process
We select only high-density, durable hardwood veneers (Eucalyptus, Birch, Okoume, Meranti) for both face and core layers. Each veneer is precision rotary-cut, dried to uniform moisture content, and defect-screened to meet BS 1088 requirements – face veneers have no open defects, with no more than 6 sound pin knots per square foot, and no end joints allowed in any veneer layer.
Performance Advantages Over Standard Plywood
The panels are laminated with cross-grain structure, bonded with WBP phenolic resin adhesive under high temperature and pressure, ensuring full glue penetration and permanent bonding. After hot pressing, panels are precision sanded, coated with phenolic film on both sides, edge-sealed, and undergo strict quality inspection, including boiling test, bending strength test, and dimensional tolerance check.
Technical Specifications
| Parameter | Standard Value | Customizable Options |
|---|---|---|
| Standard Size | 1220×2440mm (4×8ft) | 1250×2500mm, 1530×3150mm, 1220×3050mm, up to 3660mm length |
| Thickness Range | 12mm, 15mm, 18mm, 21mm, 25mm | 4mm to 50mm, custom thickness tolerance ±0.3mm |
| Core Material | Eucalyptus Hardwood | Birch, Okoume, Meranti, Poplar-Hardwood Combi |
| Face/Back Film | 120gsm Black Phenolic Film | 150-250gsm Brown Film, Anti-Slip Wire Mesh Film, Custom Logo Printed Film |
| Adhesive Type | WBP Phenolic Resin | Melamine WBP (for medium-duty applications) |
| Grade | A/A, A/B Marine Grade | B/B for non-critical structural applications |
| Density | 620-700 kg/m³ | 550-750 kg/m³ based on wood species |
| Bending Strength (MOR) | Longitudinal ≥50MPa, Transverse ≥30MPa | Custom high-strength formula available |
| Modulus of Elasticity (MOE) | Longitudinal ≥6500MPa, Transverse ≥3500MPa | - |
| Formaldehyde Emission | CARB P2, E0 Standard | CE EN 312-2 compliant |
| Boiling Test | 72 Hours No Delamination, Bonding Class 3 | 100+ hours enhanced formula available |
| Plies Count | 5-13 plies (based on thickness) | Custom ply structure for special bending requirements |
competitive advantage
Our marine grade film faced plywood solves these pain points:
Zero core voids and gaps, eliminating structural weak points
100% waterproof and anti-fungal, suitable for continuous immersion in fresh and salt water
Superior dimensional stability, no warping or twisting in temperature and humidity fluctuations
High reusability for concrete formwork (10+ times with proper maintenance), reducing project costs
FAQ
Q1: What's the difference between your marine plywood and ordinary film faced plywood?
A: Our marine plywood fully complies with BS 1088 standard, with zero core gaps, high-quality WBP phenolic glue, and strict defect control for veneers, ensuring long-term performance in water immersion and harsh environments. Ordinary film faced plywood only has basic surface film protection, with core voids and inferior glue, which will delaminate quickly in wet conditions.
Q2: How many times can this plywood be reused for concrete formwork?
A: With proper maintenance (using release agent, cleaning after use, avoiding impact damage), our 18mm high-strength film faced marine plywood can be reused 10-15 times, which is 2-3 times longer than ordinary film faced plywood.
Q3: Can you provide custom sizes and printed logos?
A: Yes, we support custom panel sizes, thickness, film color, and printed brand logos on the film surface, as well as custom ply structure and wood species for special project requirements.
